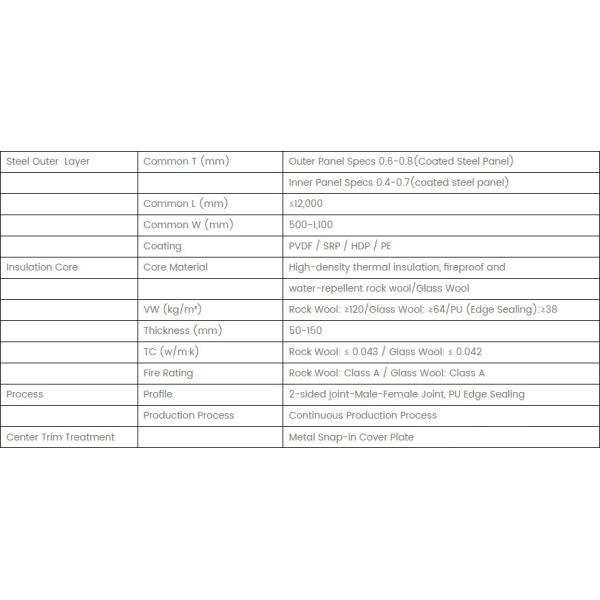

① Products Parameters:
② Product Characteristics:
Airtightness/Watertightness
-The closed cavity water resistant structure functions as a rain screen to avoid water seepage and improve the water-
-airtightness
Interlaced joint structure leads to better air tightness
Multi-purpose Pu edge sealing
-Thermal insulation: Hard Pu foam is used to fillthe installation side of the panel which effectively blocks heat conduction
and improves thermal insulation performance
-High Strength: increased structural and joint strength to prevent deformation
-Watertightness: Pu edge sealing increases air tightness, effectively blocking rain leakage, and preventing the corematerial from strength reduction due to moisture absorption. The thermal conductivity is quite low, privide more durableinsulation performance for panels and systems
1. Flame retardant performance grade reaches A class, which improves the overall fire performance of the steel building
2. Polyurethane is used as the filing on both sides of the mouth, which efectively reduces the heat conduction and cuts off
the water leakage, prevents the fire proof cotton from reducing the strength and insulation performance due to moisture
absorption, and makes the fire insulation performance more durable.
3. High capacity and heavy core material make the thermal insulation performance better.4. Hard polvurethane foam flina is adopted on both sides of the mouth to enhance the overall strenath and prevent the
deformation of the mouth.5. fire cotton 90 degrees of rotation, so that the cotton fiber and the board surface into a vertical state, enhance thecompressive tensile strength of more than 50%
③ Product Project Cases:
Product Tags:
|
|
50mm PU Sandwich Panel A-Class Fireproof Wall Panel Images
|
